ACTA-E190-UHF        Passive long range reader

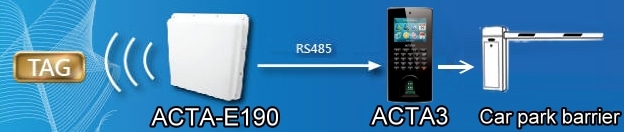

ACTA-E190-UHF Built-in high sensitivity 6.5 dBi gain antenna and 25 dBm RF module with data output via RS485 interface., it can be remote link communications with terminal equipment.

  • Bulit-in 25 dBm RF module and 6.5 dBm gain antenna
  • Electronic tag compliant with EPC Gen (ISO18000-6C) standard
  • Invention patented design to reduce EMI radiation
  • Supports data output via communication interfaces including RS485
  • Intergrated output design for easy installation
  • Wall mount design can be applied to indoor access control

Operating Voltage                  12V

Antenna Gain                          6.5 dbi
Antenna Connection              50 ohm U.FL.
Transmitting Power                 25 dBm (Adjustable)
Communication                       RS485
Operating Frequency             902-928 MHz
Supported Transponders        EPC Gen2(ISO 18000-6C)
Modulation                                  PR-ASK,ASK
Current Consumption              < 1A
Temperature Range                 Operating -20C to +55C, Storage -20C to +85C
Receiving sensitivity                -85 dBm
Reading range (Avg.)               > 5M
Dimension( L x W x H )           117 x 117 x 44.4 mm
