Offering keypad PIN (Password) and HID Proximity Smartcard, the unit is used in both security (access control) and workforce management applications.

  • Embedded Web server for easy access via any browser
  • Encrypted network communication

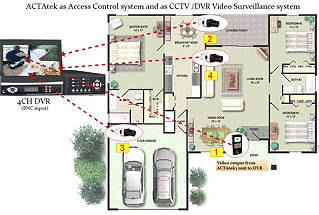

  • Optional built-in CMOS/Video camera  for Video Surveillance( system diagram)

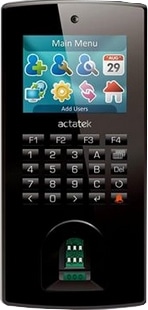

ACTAtek Smartcard only model which supports HID Proximity Card platforms.

ACTAtek Smart Card only model also supports an optional built-in CMOS camera that can take snapshots of accepted or rejected attempts and store up to 500 photos directly in the ACTAtek database for viewing via the web interface/browser.Also,you can connect ACTAtek Video camera Output to LCD monitor or DVR for all-in-one Video Surveillance solution.

  • Embedded software, no software installation necessary.
  • State of the art embedded, encrypted Linux web server technology. Control, configure & administrate via web browser
  • SSL encrypted communication between units & browser
  • Real time system update & configuration
  • Operates in Standalone or Network modes(Access Manager)
  • Robust and scalable (thousands of users on global basis) for enterprise-wide deployment
  • IP 65 rated, weather & impact resistant casing (fluid ingress, dust, salt, fog protection)
  • Built-in CMOS/Video camera for Video Surveillance(optional)
  • Up to 500 photos (FIFO internal storage)
  • API support for easy interface to most software applications
  • 1,000, 3,000 , 5,000 ,10,000, 15,000 , 20,000 or 30,000 users
  • Up to 75,000 event logs
  • Three Modes of authentication
    • Smart Card only or Barcode only
    • Smard Card+PIN
    • ID + PIN.
  • Multi-lingual interface (LCD & Web)
  • Wiegand 26-bit output (Optional –External I/O board)

Smartcard Reader Option

Description Reading Distance
 HID ProxCard II
ProxKey II
ProxCard Plus
Smart DuoProx II
Smart ISOProx II
DuoProx II
ISOProx II
MicroProx Tag
(Supports formats of 26, 34, 35 & 37 bit)		 3 – 3.5 cm
8 – 10 cm
3 – 5 cm
6 – 8 cm
6 – 8 cm
6 – 8 cm
6 – 8 cm
6 – 8 cm
3 – 5 cm

ACTAtek Smart Card Unit Spec

Description Spec
Built-in SmartCard Reader Yes
Built-in Web and Database Server Yes
DOC flash (MB) 256
Number of users 1/3/5/10/15/20/30k
Max transaction records stored 10k eventlog for 10k, 15k, 20k and 30k users model 75k eventlog for 1k ,3k and 5k users model
Max photos stored 500
SNMP compliant Yes. (with patch)
Static IP address assignment Yes
Dynamic IP address assignment(DHCP) Yes
Backlit LCD Display(128×64) Yes
Non-volatile Memory 256MB
Computer supported (with Internet Browser) Mac OS Windows 95/98/NT/2000/XP/Vista/Server Pocket PC(PDA) /Linux PC /Unix Machine
Valid Characters for Employee ID 0-9, A-C (max. 16 characters)
Authentication Time <1 second
Database interface interface support ODBC/JDBC
Encryption Secure Socket Layer(SSL)
Multilingual support Yes
Network interface 100BT Ethernet (Built-in) GSM/GPRS, Wi-Fi (external device is required)
Expansion RS-232/RS-485
Programming API Access Manager SOAP API
Report(TXT/CSV output format supported) Yes
Remote Control(TCP/IP) Yes
Operation Temperature -20ºC-60ºC
Relay support 1x Door strike 1
Case(without built-in PoE module) IP65-fluid ingress, dust, salt, fog protection
Safety Standard CE, FCC, IP65(without built-in PoE)

ACTA series IoT devices – Options for additional functionality
Smartcard cards: for use with the embedded smartcard reader.
WiFi Adaptor: To create a wireless network connection in WLAN environment
Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability.
Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications.
3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway.
UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages.
